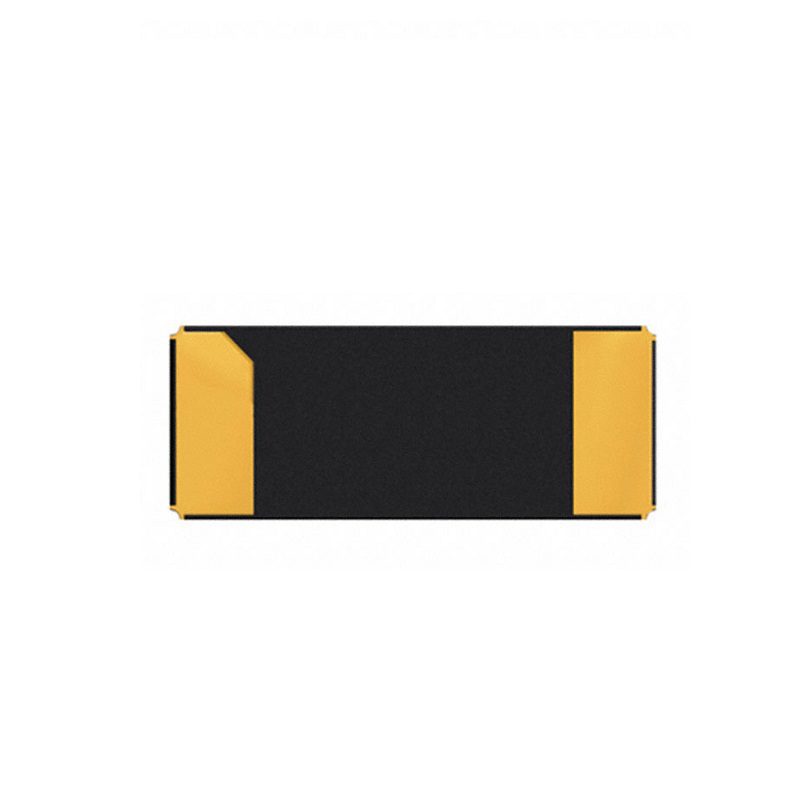

ABS07AIG-32.768KHZ-1-T-ABRACON-Crystal, AEC-Q200, 32.768 kHz, SMD, 3.2mm x 1.5mm, 12.5 pF, 10 ppm, ABS07AIG

Images for reference only.

Specifications:

1. Manufacturer: Abracon LLC
2. Package:  SMD3215-2P
3. Frequency:  32.768kHz
4. Load Capacitance: 12.5pF
5. Equivalent Series Resistance(ESR):  80kΩ
6. Normal temperature Frequency Tolerance: ±10ppm
7. Frequency Stability:  –
8. Operating Temperature:  -40℃~+125℃

For more technical information refer the datasheet.

Package Includes:

1 x ABS07AIG-32.768KHZ-1-T-ABRACON-Crystal, AEC-Q200, 32.768 kHz, SMD, 3.2mm x 1.5mm, 12.5 pF, 10 ppm, ABS07AIG
