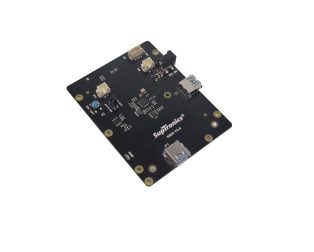

52Pi X820 V3.0 2.5″ SATA HDD/SSD Shield Expansion Board Kit for Raspberry Pi 1 Model B+/ 2 Model B / 3 Model B / 3 Model B+

52Pi X820 V3.0 2.5″ SATA HDD/SSD Shield Expansion Board Kit for Raspberry Pi 1 Model B+/2 Model B/3 Model B/3 Model B+

The 52Pi X820 V3.0 Expansion Board Kit is designed to provide Raspberry Pi users with seamless storage expansion by supporting 2.5-inch SATA HDDs and SSDs. It enables direct connection of external drives to the Raspberry Pi, offering large-capacity storage and fast data access for media centers, servers, and DIY projects. The board integrates a stable power management system, onboard power switch, and high-speed data transfer capability, making it ideal for applications that demand reliable and extended storage.

Features:

1. Large Storage Support – Compatible with up to 4TB 2.5-inch SATA HDDs/SSDs; supports USB booting from the drive.
2. Integrated Power Control – On-board push button for power ON/OFF (Press = ON, Hold 2s = OFF); powers Raspberry Pi via 40-pin header or Micro USB socket.
3. Extended Connectivity – Includes XH2.54 connector and USB power socket to supply power to other devices.
4. High-Speed Data Transfer – Features a USB 3.1 Gen1 to SATA 6Gb/s bridge controller; supports USB 2.0 plug-and-play on Raspberry Pi; enables quick transfers via USB 3.0 from PC/Mac.
5. Flexible Power Options – Works with external self-power or USB bus-power modes.
6. Status Indicators – Red LED shows power status, Blue LED shows drive activity.
7. Raspberry Pi Compatibility – Designed for Raspberry Pi 1 Model B+, 2 Model B, 3 Model B, and 3 Model B+.

Applications:

• Home NAS & media server
• DIY cloud storage
• Web/database hosting
• IoT & data logging projects
• Backup & file sharing with Raspberry Pi

Package Includes:

1 x X820 V3.0 Expansion Board

1 x USB to Micro USB Power Cable(Length:14.5cm/5.71inch)

1 x USB Connector

1 x 2 Pin Power Connection Wire(Cable: 10cm/3.93inch)

1 x Install Screws Pack
