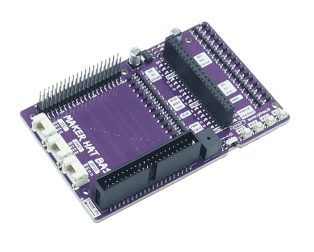

Cytron Maker Hat Base – HAT & GPIO Extension for Raspberry Pi 400

The Maker Hat Base is the ultimate extension board for Raspberry Pi 400, designed to make GPIO access simple and convenient. With clearly labeled pins, status LEDs, and a mini breadboard, it’s perfect for testing and building circuits. Compatible with Raspberry Pi 3 and 4, it supports HAT integration, external modules via Grove ports, and quick prototyping. Onboard features like programmable push buttons and a buzzer ensure you can start coding and experiment effortlessly.

Features:

1. Wide Compatibility: Specially designed for Raspberry Pi 400 and compatible with Raspberry Pi 3 & 4.
2. GPIO Accessibility: Clearly labeled GPIOs with breakout pins and status LEDs for easy testing.
3. Onboard Modules: Includes 3 Grove ports (GPIO, UART, I2C), a programmable buzzer, and 4 push buttons.
4. Enhanced Prototyping: Comes with a mini breadboard and IDE cable for quick circuit building.
5. Power Support: Onboard 3.3V regulator provides up to 800mA additional current..

Package Includes:

1 x Maker Hat Base
1 x Mini Breadboard (Random Color)
1 x 40-Way Female to Female IDE Cable (10cm)
1 x Flat Cable Clamper with Adhesive (60mm)
4 x Silicone Bumpers
1 x PC104 2×20 Header Pin
