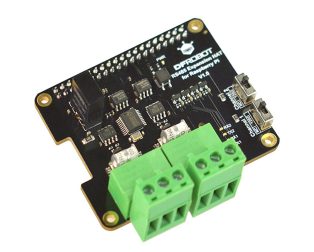

DFRobot Dual-channel RS485 Expansion Hat for Raspberry Pi 4B

RS485 is a common serial communication standard with features such as good noise rejection, long transmission distance, and multi-drop capability. It transmits data using a differential transmission method, which allows it to suppress common-mode interference. RS485 requires a pair of twisted-pair cables and two terminal resistors to eliminate signal reflection during long-distance communication.

This dual-channel RS485 expansion HAT designed for the Raspberry Pi adopts an isolated transceiver to achieve isolation for RS485, which increases the reliability and anti-interference of data transmission in each channel. And it features embedded protection circuits such as a lightning and surge protector, a TVS diode, and power supply isolation to protect the Raspberry Pi development board effectively.

Besides, the order includes a screw accessory kit that allows users to tightly fix this board onto a Raspberry Pi controller.

Applications:

1. Agricultural Internet of Things
2. Warehouse Internet of Things
3. Indoor and Outdoor Environmental Monitoring
4. Lighting Control
5. Security Access Control System

Features:

1. Dual Channel RS485
2. Electrical & signal isolation
3. Lightning & surge protection
4. Transient voltage suppressor
5. RX/TX data transmitting/receiving indicator

Package Includes:

1 x RS485 Expansion HAT for Raspberry Pi
4 x Copper Column & Screw
