Digilent MCC 118 : Voltage Measurement DAQ HAT for Raspberry Pi

Measurement Computing Corporation (MCC) and Data Translation (DT) DAQ products are now part of the Digilent family of test and measurement solutions. MCC and DT are leading suppliers of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

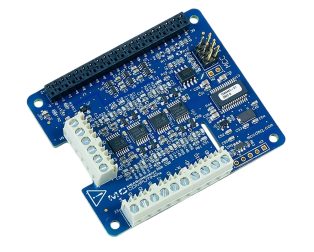

The Digilent MCC 118 Voltage Measurement DAQ HAT  feature eight channels of analog voltage measurement for Raspberry Pi-based data acquisition systems. Each device has a maximum sample rate of 100 kS/s for taking single point or waveform voltage measurements. Up to eight MCC HATs can be stacked onto one Raspberry Pi – providing up to 64 channels of data and a maximum throughput of 320 kS/s.

Voltage Measurement DAQ HAT  features 12-bit resolution and 8 SE analog inputs with a +/-10V input range. An OEM version without screw terminal connectors is also available.

Voltage Measurement DAQ HAT  include C/C++® and Python™ examples and an open-source library. Comprehensive API and hardware documentation are also provided.

There are five devices in the MCC DAQ HAT Series. Models are available with voltage inputs, thermocouple inputs, IEPE-based sensor inputs, analog outputs, and digital I/O allowing users to configure multifunction, Raspberry Pi-based data logger solutions. Raspberry Pi is not included with the MCC 118

Note: Image may differ in terms of color.

Features:

MCC 118 Features:

1. 8 single-ended (SE) 12-bit voltage inputs
2. Maximum sample rate of 100 kS/s (320 kS/s aggregate for stacked boards)
3. Input range: +/-10 V
4. Onboard sample buffers for high-speed data acquisition
5. External scan clock I/O
6. External digital trigger input
7. Screw terminal connections for easy installation

Package Includes:

1 x  MCC 118 DAQ HAT
2 x 20 Header connector (plugs into the 40 pin GPIO connector on the Pi board)
3 x Jumpers
4 x Standoffs
4 x Screws
4 x Nuts

1 Year Warranty
