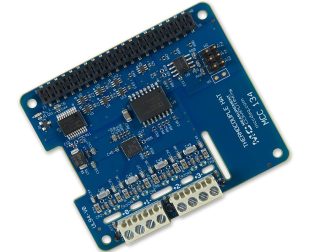

Digilent MCC 134: Thermocouple Measurement DAQ HAT for Raspberry Pi

Measurement Computing Corporation (MCC) and Data Translation (DT) DAQ products are now part of the Digilent family of test and measurement solutions. MCC and DT are leading suppliers of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

The MCC 134 Thermocouple Measurement DAQ HAT features four thermocouple inputs for adding temperature measurement capability to Raspberry Pi-based data acquisition systems. It features 24-bit resolution and provides professional-grade accuracy which is best in class. The MCC 134 also offers open thermocouple detection so users can monitor for broken or disconnected thermocouples and each channel type is selectable on a per-channel basis. Up to eight MCC HATs can be stacked onto one Raspberry Pi.

All DAQ HATs include C/C++ and Python™ examples and open-source library. Comprehensive API and hardware documentation are also provided.

There are five devices in the MCC DAQ HAT Series. Models are available with voltage inputs, thermocouple inputs, IEPE-based sensor inputs, analog outputs, and digital I/O allowing users to configure multifunction, Raspberry Pi-based data logger solutions.

Raspberry Pi is not included with the MCC 134.

Features:

1. Four isolated thermocouple inputs
2. 24-bit A/D converter
3. 1 second update interval, minimum
4. Thermocouple types J, K, R, S, T, N, E, and B supported
5. Cold junction compensation
6. Screw terminal connections

Package Includes:

1 x Digilent MCC 134: Thermocouple Measurement DAQ HAT for Raspberry Pi

2 x 20 Header connector

4 x Standoffs

4 x Screws

4 x Nuts

3 x Jumpers

1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
