Digilent MCC 152 Voltage Output and DIO DAQ HAT for Raspberry Pi

Measurement Computing Corporation (MCC) and Data Translation (DT) DAQ products are now part of the Digilent family of test and measurement solutions. MCC and DT are leading suppliers of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

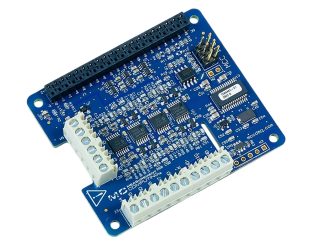

The Digilent MCC 152: Voltage Output and DIO DAQ HAT  features two channels of analog voltage output and eight digital I/O for Raspberry Pi-based systems. The 12-bit voltage outputs feature a 0-5 V range and can be updated at up to 5 kS/s. Up to eight MCC HATs can be stacked onto one Raspberry Pi.

All DIO DAQ HAT s include C/C++® and Python™ examples and open-source library. Comprehensive API and hardware documentation are also provided.

There are five devices in the MCC DAQ HAT Series. Models are available with voltage inputs, thermocouple inputs, IEPE-based sensor inputs, analog outputs, and digital I/O allowing users to configure multifunction, Raspberry Pi-based data logger solutions.

Raspberry Pi is not included with the MCC 152.

Features:

1. Two 12-bit simultaneous voltage outputs
2. 5 mA output drive, sourcing
3. 0.8 V/µs slew rate
4. Eight bidirectional digital bits
5. 5V / 3.3V operation; CMOS input thresholds
6. Programmable input polarity
7. Screw terminal connections

Package Includes:

1 x  MCC 152 DAQ HAT
2 x 20 Header connector (plugs into the 40 pin GPIO connector on the Pi board)
3 x Jumpers
4 x Standoffs
4 x Screws
4 x Nuts

1 Year Warranty
