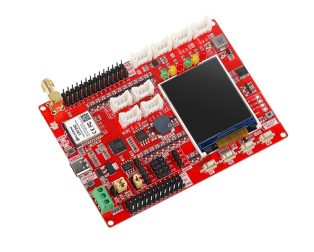

Elecrow LoRaWAN LR1262 Development Board Integrated RP2040 with 1.8 “ LCD

Elecrow LoRaWAN LR1262 Development Board Integrated RP2040 with 1.8 “ LCD -based development board with the LR1262 module supports LoRa and LoRaWAN protocols. It features dual-core ARM Cortex-M0+ performance and ultra-low power consumption, ideal for IoT and embedded systems. The board includes Crowtail, GPIO, RS485, SPI, I2C, and UART interfaces, along with integrated components like a buzzer, RGB indicators, and a 1.8-inch SPI LCD (128×160), simplifying prototype development.

Features:

1. Uses RP2040 as the main controller, with two 32-bit ARM Cortex M0+ processor cores (dual-core) ,and provides more powerful performance
2. Integrates the LR1262 module supports the 868/915MHz frequency band and AT command control
3. Abundant external interface resources, compatible with Crowtail series modules and other commonly interface modules on the market
4. Integrates commonly used functionslike buzzer, LED light, LCD display and custom button, making it more concise and convenient when creating projects
5. Onboard 1.8-inch 128*160 SPI-TFT-LCD, ST7735S driver chip
6. Compatible with Arduino/Micropython, easy to carry out different projects.

Package Includes:

1 x LR1262 Development Board
1 x Lora Spring Antenna (868Mhz/915Mhz)
1 x Lora Rubber Antenna (868Mhz/915Mhz)

Note : Image is for Refence

1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
