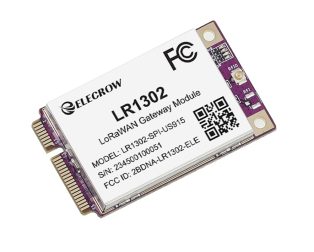

Elecrow LR1302 LoRaWAN Gateway Module SPI US915 SX1302 Long Range Gateway Module

The Elecrow LR1302 LoRaWAN Gateway Module SPI US915 SX1302 Long Range Gateway Module is a low-power, high-performance LoRaWAN® gateway module with a mini-PCIe form factor. It uses the SX1302 LoRaWAN® chip, offering higher sensitivity, lower power consumption, and better efficiency than previous models.

Elecrow LR1302 LoRaWAN Gateway Module SPI US915 SX1302  supports 8-channel data transmission, multiple device connections, and includes two antenna interfaces (LoRa and U.FL) with a metal shield for interference protection. Available in SPI and USB versions, it covers US915 and EU868 frequency bands, ideal for IoT applications in smart cities, agriculture, and industrial automation.

Features:

1. Uses Semtech® SX1302 baseband LoRa® chip with extremely low power consumption and excellent performance;
2. Mini-PCIe form factor and compact design make it easier to integrate into various gateway devices, suitable for space-constrained
3. application scenarios, and provide flexible deployment options;
4. Support 8-channel data transmission, provide more efficient communication efficiency and capacity;
5. Ultra-low operating temperature eliminates the need for additional cooling and reduces the size of the LoRaWAN® gateway;
6. Uses SX1250 TX/RX front end with sensitivity down to -139 dBm@SF12; TX power up to 26 dBm @3.3V;
7. FCC certification, simplifies the certification process of the final product and provides convenience for certification.

Package Includes:

1 x LR1302 LoRaWan Gateway-US915

Note: It doesn’t include Raspberry Pi, GPS, Gateway HAT, IPEX and antenna.

1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
