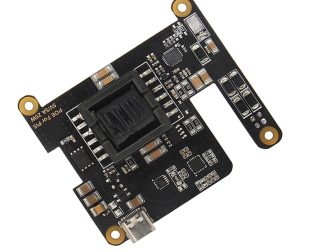

Geekworm Raspberry Pi 5 PoE Hat support 802.3af/at [Pi5-POE-PD-A]

The Raspberry Pi 5 PoE Hat support Ethernet power expansion board supports the IEEE 802.3af/at network standards. It is ideal for use with PoE routers or switches that also support these standards, allowing for both power and network connectivity to the Raspberry Pi through a single Ethernet cable. Raspberry Pi 5 PoE Hat support setup utilizes Type C for power delivery, offering higher current suitable for the Raspberry Pi 5 and includes a PD active protocol to prevent the 5A startup warning.

Note: Due to the limitations of the USB-C connector, there is currently no matching case now.

Features:

1. Supports the IEEE 802.3af/at network standards
2. No configuration required, plug and play
3. with a PD protocol IC to prevent the 5A warning at Raspberry Pi startup.
4. All GPIO ports are reserved, Don’t occupy Raspberry Pi 40P GPIO.
5. Offers Type C power supply for higher current, ensuring a more standard power supply For Pi5
6. Supports Raspberry Pi official Active Cooler and other third party cooler.
7. Input: 37V~57V / Output: 5V 4.5A (MAX)

Specification:

1. Standards: IEEE 802.3af/at
2. Input Voltage: 37V ~ 57V
3. Output Voltage: 5V
4. Output Current: 4.5A (MAX)
5. Power Delivery Protocol: PD active protocol (prevents 5A startup warning)
6. Connector Type: USB-C

Packing include:

1 x PoE Shield

1 x usb-c connector
