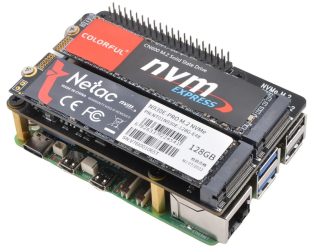

Geekworm X1004 PCIe to Dual 2280 NVMe SSD shield for Raspberry Pi 5

The X1004 is specifically designed to be placed on top of the Raspberry Pi 5, similar to a traditional HAT, and it provides a 40-pin header for easy access to the GPIO. With this NVMe shield, you can still use your favorite HATs alongside it. Additionally, it is fully compatible with the Raspberry Pi’s official passive cooler, ensuring efficient heat dissipation. The inclusion of mounting holes and standoffs not only protects the solid-disk drives but also effectively dissipates heat for reliable performance. The built-in LED light indicates the status of reading or writing, eliminating any guesswork.

Note: Raspberry Pi Board is Not Included.

Features:

1. Model: X1004
2. Compatible with Raspberry Pi 5 Only
3. M.2 NVMe dual SSD Shield for Raspberry Pi 5
4. Supports a total of 8TB storage capacity (4TB+4TB) with M.2 NVMe solid-state drives
5. Accommodates two full-size 2280 NVMe SSDs
6. Provides speedy data transfer with PCIe 2.0 5Gbps
7. Fully compatible with the Raspberry Pi official active cooler
8. LED indicators in blue display power and drive status
9. Designed to be attached on top, allowing stacking with other HATs
10. Powered via the 40-pin GPIO header & PCIe FFC
11. Compatible with the HAT+ STANDBY power state, automatically turning off when the Pi 5 shuts down

Package Includes:

1 x X1004 v1.1 Shield
1 x Scews Pack

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
