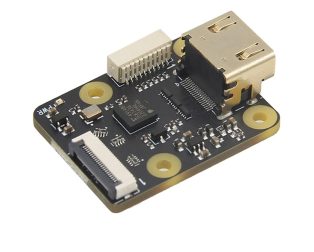

Geekworm X1300 HDMI to CSI2 Shield for Raspberry Pi 5 Only

The X1300 HDMI to CSI 2 Shield bridge is a specialized module designed for the Raspberry Pi 5, featuring the Toshiba TC358743XBG bridge chip. This compact device allows users to connect HDMI to CSI 2 Shield sources to the Raspberry Pi CSI interface, enabling high-definition video processing and versatile application possibilities.

With support for video formats up to 1080P at 60 fps, the X1300 efficiently handles arrange of HDMI to CSI2 Shield inputs, making it ideal for various multimedia projects. HDMI to CSI2 Shield utilizes MIPI CSI-2 technology with four data lanes, each capable of speeds up to 1 Gbps, ensuring fast and reliable data transfer.

Features:

1. Compatible With : Raspberry Pi 5B Only (NOT Raspberry Pi 4 and Pi 3) / Raspberry Pi Compute Module 4 IO board
2. Capable of handling video formats up to 2K Full HD (1920×1080, 60fps).
3. Equipped with the HDMI to CSI-2 bridge chip: Toshiba TC358743XBG
4. Supports MIPI CSI-2 with 4 data lanes, each with speeds of up to 1 Gbps per lane
5. Enables HDMI audio input and transmission over I2S – (Note: To capture HDMI audio via I2S, additional wiring or the X1300-A2 accessory board is necessary.)
6. Prevents HDMI backpowering to the Raspberry Pi CSI
7. Features a CSI-2 connector: 22-pin FPC with 0.5mm pitch
8. Boasts an ultra-compact design: 30 x 37.5 mm (PCB size)
9. Easily mountable on the Raspberry Pi 5, allowing you to customize your perfect case

Package include:

1x X1300 module

2x 22-pin MIPI FFC

1x Screw pack

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
