GSPK3005TN-8R0.5W-L300S-2.54T-INGHAI-D30*H5.0mm round 8 ohm 0.5W 85+/-3DB with 2.54mm pitch 300mm cable.

GSPK3005TN-8R0.5W-L300S-2.54T-INGHAI-D30*H5.0mm round 8 ohm 0.5W 85+/-3DB with 2.54mm pitch 300mm cable. The GSPK3005TN-8R0.5W-L300S-2.54T-INGHAI is a compact round buzzer (D30 × H5.0mm) designed for reliable sound output in electronic devices. With an 8Ω impedance, 0.5W power rating, and sound pressure of 85±3dB, it ensures clear and consistent audio performance. The unit comes with a 300mm cable and 2.54mm pitch connection, making it easy to integrate into a wide range of circuits and applications. Ideal for alarms, indicators, and general audio signaling in consumer and industrial electronics.

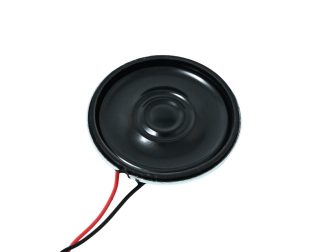

Image for reference only.

Specifications:

1. Rated Impedance:  8Ω ± 15%
2. Rated Input Power:  0.5 W
3. Maximum Input Power:  1 W
4. Resonant Frequency (Fo):  800 Hz ± 20%
5. Output Sound Pressure Level:  90 ± 3 dB
6. Effective Frequency Range:  Fo ~ 20 kHz
7. Distortion:  ≤ 5%
8. Operating Temperature:  –25 ℃ ~ +50 ℃
9. Storage Temperature:  –25 ℃ ~ +55 ℃

Package Includes:

1 x GSPK3005TN-8R0.5W-L300S-2.54T-INGHAI-D30*H5.0mm round 8 ohm 0.5W 85+/-3DB with 2.54mm pitch 300mm cable.

1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
