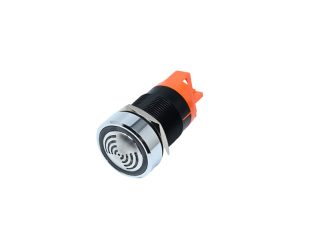

LB22FM-LANBOO-22MM Buzzer(DC12V)

LANBOO 22mm buzzer has become a popular sound prompt component in the market with its moderate size, excellent material, excellent performance and wide application fields. 22mm, this standard size enables LANBOO buzzer to easily adapt to a variety of installation environments and scenarios. Supports multiple voltage inputs such as DC12V, DC24V and AC220V to meet the needs of different circuit designs.
The surface is clean and the gloss is uniform, showing a high-end texture. The stainless steel color or chrome-plated head design increases the beauty and durability of the product. The continuous working life can reach more than 20,000 hours, ensuring long-term stable operation.
LANBOO 22mm buzzer also has a luminous function, and the luminous color is mostly red. It can be used as a flash buzzer, emitting a flash signal while emitting sound, which more prominently reminds users to pay attention.
It is widely used as a sound-generating device in electronic products such as computers, printers, copiers, alarms, electronic toys, automotive electronic equipment, telephones, timers, etc. At the same time, it is also suitable for use as indication signals, warning signals, accident signals and other indication signals in the lines of various equipment such as electricity, telecommunications, machine tools, ships, textiles, printing, mining machinery, etc.

Specifications:

1. Installation hole diameter: 22MM
2. Product number: LB22FM
3. head shape:  Q-Ball head
4. LED luminous color: R-Red
5. Input voltage:  DC12V, DC24V, AC220V custom:DC5V
6. Head material:  S-304 stainless steel N-H59 copper nickel plated
7. Protection level:  Waterproof IP65, anti-collision IK10
8. Connection mode:  Screw pin connection
9. Rated current:  <60mA
10. Decibel of sound source:  70-110DB
11. On-going life:  10000h
12. product certified:  CCC CE ROHS(custom)REACH(custom)

Package Includes:

1 x LB22FM-LANBOO-22MM Buzzer(DC12V)
