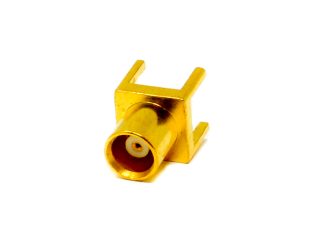

MCX Straight Connector Coax Female Through Hole For PCB

MCX Straight Connector Coax Female Through Hole For PCB

We at robu offers, a full range of cable mount BNC/TNC and diverse range of RF connectors plugs, jacks and bulkhead jacks. These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish. . A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors which suits your needs

Main Application of MCX Connectors:

Consumer Electronics: GPS, HDTV, Wireless Internet TV and Audio, smartphone antenna port,
Aerospace and Defense: GPS and Hand-held Device
Medical: Telemetry
Telecommunications: GPS tracking, positioning and navigation devices, Telecommunications networks, Wireless Base Station, Wireless-LAN
Data/Communications: Wireless-LAN, Wireless-PAN(Bluetooth), Wireless-WAN
Industrial: Machine to machine communications

Features and Specifications:

Features:

1. Pcb Mount, Straight/180°,50Ω, jack/female, Through Hole;
2. 30% smaller than SMB with same contact and insulator size, make MCX connector lighter and work in smaller space;
3. Snap-on Interface ideal for quick Installation and discount;
4. High cost-effective with excellent broadband performance and low reflections.

Specifications:

Electrical Characteristics

1. Impedance：50 ohm
2. Frequency Range: 0~6 Ghz
3. VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
4. Dielectric Withstanding Voltage: 1000 V RMS
5. Working Voltage: 335 V RMS
6. Center Contact Resistance ≦ 5.0 mΩ  (Milliohms max.)
7. Outer Contact Resistance  1.0 mΩ  (Milliohms max.)
8. Insulation Resistance ≧ 1000 mΩ

Mechanical Characteristics

1. Coupling: Snap-on/Snap-off
2. Contact Retention: 4 lbs min.
3. Mating Durability: ≧500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

1. Environmental Characteristics: Teflon -65°C ~ +155°C
2. Vibration: MIL-STD-202 Meth.204
3. Corrosion Resistance: MIL-STD-202 Meth. 101

Note: Refer Schematic Image for Dimensional Details

Package Includes:

1 x MCX Straight Connector Coax Female Through Hole For PCB
