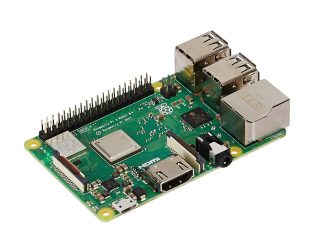

Official Raspberry Pi Model 3B+

The Raspberry Pi Model 3B+ is the latest upgrade in the Raspberry Pi 3 family, featuring a 64-bit quad-core processor running at 1.4 GHz. It comes with dual-band 2.4 GHz and 5 GHz wireless LAN, Bluetooth 4.2/ BLE, faster Ethernet, and PoE capability via a separate PoE HAT. Powered by the Broadcom BCM 2837 ARM Cortex-A 53 64-bit Quad-Core SoC, the board delivers excellent performance while maintaining low power consumption.

The GPU supports OpenGL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decoding, capable of 1Gpixel/s, 1.5Gtexel/s, or 24 GFLOPs of general-purpose computing. This means that when connected to an HDTV, the Raspberry Pi 3 B+ can stream Blu-ray quality video using H.264 at 40MBits/s. With four built-in USB ports, you can easily connect peripherals such as a mouse, keyboard, or external storage, and still expand connectivity using a powered USB hub for more demanding devices.

Powering the Raspberry Pi 3 B+ is simple with a 5 V/2.5 A micro USB power supply. The device boots automatically once connected to power and can be safely shut down by turning off the system before unplugging. Its 40-pin GPIO header provides access to 27 GPIO pins, UART, I2C, SPI, and multiple voltage sources, making it a versatile choice for hardware hacking and DIY projects. For smooth operation, ensure your NOOBS card is updated to the latest version for compatibility with the Raspberry Pi 3 B+.

Note: Use only with the recommended power supply. Using any other power supply may cause damage and will void the warranty.

Features:

1. 1 GB LPDDR 2 SDRAM
2. 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
3. Gigabit Ethernet over USB 2.0 (maximum throughput of 300 Mbps)
4. Extended 40-pin GPIO header
5. Full-size HDMI
6. 4 USB 2.0 ports
7. CSI camera port for connecting a Raspberry Pi camera
8. DSI display port for connecting a Raspberry Pi touchscreen display
9. 4-pole stereo output and composite video port
10. Micro SD port for loading your operating system and storing data
11. 5V/2.5A DC power input
12. Power-over-Ethernet (PoE) support (requires separate PoE HAT)

Useful Links:

Downloads from Raspberry Pi

Setting up your Raspberry Pi

Raspberry Pi Accessories

Package Includes:

1 x Official Raspberry Pi Model 3B+

1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
