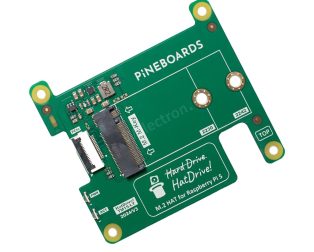

Pineboards TM1S HatDrive! Top (NVMe 2230, 2242 GEN 3) for Raspberry Pi 5

Introducing the HatDrive! TM1S (TOP) – the ultimate companion for your Raspberry Pi 5. Pineboards TM1S HatDrive! Top (NVMe 2230, 2242 GEN 3) for Raspberry Pi 5  is designed to enhance your experience with fast and reliable NVMe storage. We think that it is is a must-have for anyone looking to get the most out of their Raspberry Pi 5.

Features:

1. Raspberry Pi 5 Compatible – Designed specifically for the latest Raspberry Pi 5.
2. NVMe Support – Supports M.2 NVMe (M-key) drives in 2230 and 2242 sizes.
3. PCIe x1 Interface – Compatible with Gen2 and Gen3 PCIe standards.
4. Dual LED Indicators – Power (“PWR”) and M.2 activity (“ACT”) LEDs.
5. Compact Form Factor – Fits standard Raspberry Pi HAT dimensions (65 x 56.50 mm).
6. 40-Pin HAT Connector – Fully compatible with Raspberry Pi’s standard 40-pin interface.
7. I2C EEPROM Support – Enables HAT ID for advanced configuration.
8. Power Monitoring – Real-time voltage, current, and power diagnostics via I2C.
9. Stable Power System – 3A @ 3.3V regulator, M.2 (NGFF) standard compliant.
10. Easy M.2 Installation – CNC-machined metal bracket for secure mounting.
11. Flexible Powering – Power via FPC PCIe ribbon (5W min) or 40-pin HAT connector.
12. Clear PCB Markings – Simplifies installation and use.
13. High-Quality Build – 4-layer PCB with premium components.
14. Stackable Design – Supports additional HAT expansion.

Package Includes:

1 x FPC PCIe ribbon
4 x Spacer pins
10x M2.5 screws
1 x Spacer pin for M.2 card mounting
1 x Optional 28-pin male-female HAT connector

1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
