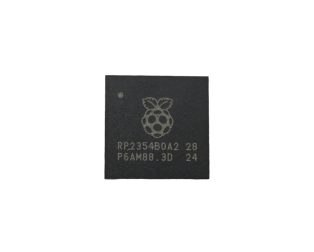

Raspberry PI RP2354B0A2 Microcontroller IC REEL of 100

The Raspberry PI RP2354B0A2 Microcontroller IC REEL of 100 new high-performance, secure microcontroller that significantly outpaces its predecessor, the RP2040. Raspberry PI RP2354B0A2 Microcontroller IC REEL of 100 is featuring a higher core clock speed, double the on-chip SRAM, more powerful Arm Cortex-M33 cores, optional open-hardware Hazard3 RISC-V cores, and improved interfacing capabilities, the RP2350 delivers notable enhancements across the board.

Its advanced security architecture is built around Arm TrustZone for Cortex-M and includes features such as signed boot, SHA-256 acceleration, a hardware true random number generator (TRNG), and 8KB of antifuse OTP for secure key storage.

These elements are backed by extensive and transparent documentation, empowering developers to build secure, professional-grade products. The RP2350’s dual-core, dual-architecture design offers flexibility in application, while its three Programmable I/O (PIO) co-processors enable efficient, software-defined interfacing.

With four package variants and a broad application scope—from embedded systems to industrial IoT—the RP2350 stands out as a best-in-class microcontroller solution.

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Memory:520 KB on-chip SRAM, in ten independent banks , Supports up to 16 MB external QSPI flash/PSRAM via dedicated QSPI bus, Additional 16 MB flash/PSRAM accessible via optional second chip-select
2. Peripherals: 2 × UART interfaces, 2 × SPI controllers, 2 × I²C controllers, 24 × PWM channels, 4 or 8 × ADC channels (depending on package variant), 1 × USB 1.1 controller and PHY (host and device support) , 12 × PIO state machines (for software-defined I/O)
3. Security Features: Optional boot signing, enforced by on-chip mask ROM, Key fingerprint stored in OTP
4. Protected OTP storage for optional boot decryption key, Global bus filtering based on Arm TrustZone or RISC-V privilege levels
5. Peripherals, GPIOs, and DMA channels assignable to security domains, Hardware mitigations for fault injection attacks, Hardware SHA-256 accelerator

Package Includes:

1 x Raspberry PI RP2354B0A2 Microcontroller IC REEL of 100

1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
