Description

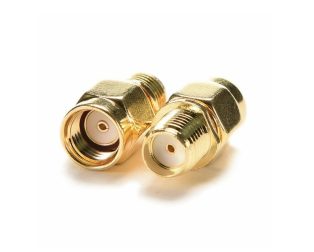

RPSMA Male to SMA Female Adapter
Reverse-Polarity SMA (RP-SMA or RPSMA) is a modified version of the standard SMA connector that reverses the gender of the center contact while maintaining the same threaded coupling mechanism. In this design, the RP-SMA male contains a female receptacle, and the RP-SMA female (jack) contains the center pin.
RP-SMA connectors are widely used in WiFi and WLAN applications, making them the most popular reverse-polarity RF connectors in wireless communication systems.
Applications
-
WiFi routers and antennas
-
WLAN systems
-
Wireless communication devices
-
RF interconnect applications
Features
-
High-quality, durable materials
-
Precision-engineered for stable signal transmission
-
Reliable threaded coupling for secure connection
-
MIL-grade version available on request
Package Includes
-
1 × RPSMA Male to SMA Female Adapter
Specification
| Specification | Details |
|---|---|
| Manufacturer | LAMBDOID |
| Dielectric Withstanding (V) | 500–1000 VRMS (depends on cable) |
| VSWR | < 1.5 |
| Contact Resistance | Centre: 6 milliohm, Outer: 2 milliohm |
| Power Handling (W) | 10 |
| Insulator Resistance | 500 Megaohms |
| Gender | Female, Male |
| Insulators | Teflon |
| Additional Specs. | Crimp Ferrules: Annealed copper Ni/Au plated |
| Clamp Gaskets | Silicone rubber |
| Operating Temperature (°C) | -30° to 60°C |
| Humidity Range | 5 – 95% |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 1 × 1 × 1 cm |
Warranty
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
What voids the warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
