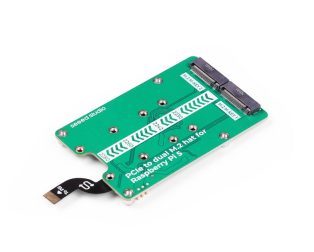

Seeed Studio PCIe3.0 Switch to Dual M.2 Hat for Raspberry Pi 5, Support NVMe SSD, Support Hailo8/8L

The Seeed Studio PCIe 3.0 Switch to Dual M.2 HAT is an expansion board designed specifically for the Raspberry Pi 5, enabling users to fully leverage the board’s PCIe interface. This is  features a PCIe Gen 3.0 switch chip that splits the single PCIe lane from the Raspberry Pi into two M.2 M-Key slots. These slots support NVMe SSDs for high-speed storage, as well as AI accelerators like the Hailo-8 and Hailo-8L, making it ideal for edge computing, machine learning, and data-intensive applications. It offers a practical solution for users who want to combine fast storage and AI capabilities without compromising on form factor or performance.

Features:

1. Dual M.2 Slot with PCIe3.0 Speed: Utilizing the ASMedia ASM2806 PCIe 3.0 switch chip, ensures optimal performance, overcoming PCIe 2.0 limitations.
2. Stable Power Supply: Additional Pogo Pins for extra power supply to ensure a stable high-speed connection.
3. Multiple Size Support: 2230/2242/2260/2280 M.2 standard size compatible.
4. Back-mounted Design: 40-pin GPIO free to use, compatible with other Pi hats
5. User-friendly Design: S-shaped FPC cable does not obstruct the micro SD card.
6. Open Source Case: Seeed M.2 hats doesn’t compatible with Raspberry Pi official case, so we provide adapted 3D printing case stp file.

Application:

1. Simultaneously supports AI acceleration and high-speed SSD storage
2. Connects dual NVMe SSDs for large storage capacity
3. Booting a Raspberry Pi from the SSD

Package Includes:

1 x PCIe3.0 to dual M.2 hat

2 x 40mm FPC cable

1 x Screw & stud pack

1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
