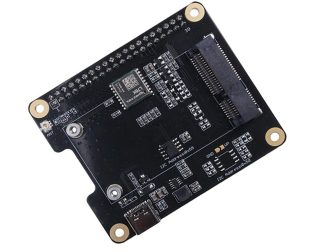

Seeed Studio WM1302 Raspberry Pi Hat

WM1302 Raspberry Pi Hat is an add-on expansion board designed specifically for attaching the WM1302 LoRaWAN Gateway module(SPI) based on SX1302 to Raspberry Pi versions up to Raspberry Pi 4B. It also integrates the LoRaWAN authentication chip and GPS module.

WM1302 module is a new generation of LoRaWAN gateway module with mini-PCIe form-factor. Based on the Semtech® SX1302 baseband LoRaWAN chip, WM1302 unlocks the greater potential capacity of long-range wireless transmission for gateway products. It features higher sensitivity, less power consumption, and lower operating temperature than the previous SX1301 and SX1308 LoRa chip.

Features:

1. Standard Pi Hat form factor with 40 pins female pin header
2. Raspberry Pi versions up to 4B compatible
3. GPS Module embedded
4. LoRaWAN authentication chip embedded

Applications:

1. LoRaWAN Gateway device/hotspot development
2. Long-distance wireless communication application development
3. Any learning and experimentation based on Raspberry Pi
4. LoRa and LoRaWAN application learn and research
5. Raspberry Pi 40-Pin Headers : Support Raspberry Pi 4 B, Support Raspberry Pi 3 A+/B/B+, Support Raspberry Pi 2 B, Support Raspberry Pi A+/B+, Support Raspberry Pi Zero/Zero W
6. PCIe Header 52 Pin Mini-PCIe Header
7. GNSS Suport GPS L1, GLONASS L1, BeiDou B1

Package Includes:

1 x WM1302 Pi Hat

1 x GPS Antenna

8 x M2.5*6mm Screw

4 x M2.5*11.0mm Stud

2 x M2.0*H6.0mm Screw

1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
