SMA (F) jack Straight Panel Mount 2 Hole

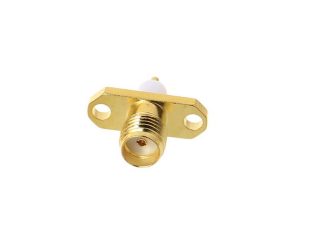

SMA Female (F) Jack – Straight Panel Mount, 2-Hole Flange

This is a 50Ω SMA Female (F) Jack Straight Panel Mount 2-Hole Flange Connector, designed for secure panel installation and reliable RF performance. It features a gold-plated brass body and a precision mechanical interface to ensure excellent conductivity, durability, and corrosion resistance.

With a voltage rating of 500V and a frequency capability of up to 18 GHz, this connector is ideal for high-frequency RF and wireless applications. It uses a solder termination method, making it suitable for stable and long-lasting connections.

Applications

• Wi-Fi equipment

• Wireless communication devices

• RF modules and antennas

• Networking and telecom hardware

Features

• Gold-plated brass body for better signal transmission

• Straight panel mount with 2-hole flange design

• 50Ω impedance for RF compatibility

• Supports up to 18 GHz frequency

• Rated for 500V operation

• Solder termination for secure mounting

Package Includes

• 1 × SMA Female (F) Jack Straight Panel Mount 2-Hole Connector

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.

What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
