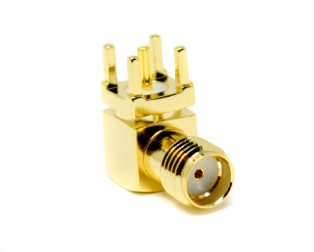

SMA Female Connector Right Angled Through-Hole for PCB Mount

SMA Female Connector – Right Angled Through-Hole PCB Mount

We at Robu offer a high-quality SMA Female Right-Angled Through-Hole Connector designed for reliable PCB mounting and superior RF performance. This connector is compatible with industry-grade 50Ω cables, featuring gold and nickel plating for enhanced durability and environmental protection.

Our range of RF connectors includes cable-mount, PCB-mount, and panel-mount options suitable for various industrial and commercial applications. Explore our RF Connectors category for more compatible solutions or contact us for custom requirements.

Main Applications of SMA Connectors

• Aerospace & Defense: Hand-held field devices and instrumentation

• Medical: Precision instrumentation

• Automotive: Bluetooth and GPS systems

• Telecommunications: Wireless base stations and cellular networks

• Data & Communications: WiFi, WiMAX

• Industrial: M2M communication, vehicle tracking, and instrumentation systems

Key Features

• Right-angled (90°), through-hole PCB mount, SMA female (jack)

• 50Ω impedance for stable signal transmission

• Excellent electrical performance up to 18 GHz

• Low signal reflection and minimal loss

• Secure threaded coupling mechanism

• Compact and durable design

• OEM factory quality with 30-day money-back guarantee

Electrical Specifications

• Impedance: 50 Ohm

• Frequency Range: 0 – 6 GHz

• VSWR:

  • Straight type: ≤ 1.3 max

  • Right-angled type: ≤ 1.5 max

• Dielectric Withstanding Voltage:

  • 1000V rms (RG142, RG405)

  • 750V rms (RG316, RG402)

  • 500V rms (RG178)

• Working Voltage:

  • 500V rms (RG142, RG405)

  • 375V rms (RG316, RG402)

  • 170V rms (RG178)

• Center Contact Resistance: ≤ 6.0 mΩ

• Outer Contact Resistance: ≤ 2.0 mΩ

• Insulation Resistance: ≥ 5 × 10³ MΩ

Mechanical Specifications

• Coupling: 1/4-36 thread

• Contact Retention: ≥ 15 in-lbs

• Coupling Nut Torque: ≥ 30 in-lbs

• Durability: ≥ 500 mating cycles (Beryllium Copper contact)

Environmental Specifications

• Operating Temperature: −65°C to +165°C

• Vibration: MIL-STD-202 Method 204

• Corrosion Resistance: MIL-STD-202 Method 101

Note: Refer to schematic image for dimensional details.

Package Includes

• 1 × SMA Female Right-Angled Through-Hole PCB Mount Connector

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.

What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
