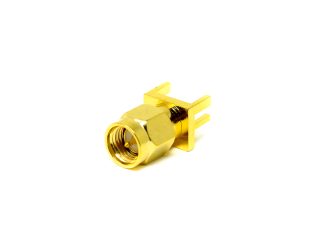

SMA Jack Straight PCB Mount(V1.0)

SMA Female Straight Edge PCB Mount Connector

RobuuCreate offers a comprehensive range of RF connectors, including cable-mount BNC/TNC connectors and a diverse selection of SMA RF connector plugs, jacks, and bulkhead jacks. These connectors are engineered to ensure compatibility with industry-standard 50-ohm and 75-ohm cables, delivering reliable electrical performance and long operational life. High-quality gold and nickel plating provide enhanced conductivity and superior environmental protection.

A wide range of standard RF connectors is available under the RF Connectors category. Explore the collection to find cable-mount, PCB-mount, and panel-mount RF connectors that best suit your application requirements. For custom or specific needs, feel free to contact our support team.

Applications

• Aerospace & Defense: Hand-held field devices and instrumentation

• Medical: Precision instrumentation

• Commercial Vehicles: Bluetooth and GPS systems

• Telecommunications: Wireless base stations, cellular mobile systems

• Data & Communications: Wi-Fi, WiMAX

• Industrial: Active & passive components, instrumentation, M2M communication, vehicle tracking systems

Features

• SMA Female Straight PCB Edge Mount Connector

• Copper construction with gold plating

• Excellent electrical performance with low reflection up to 18 GHz

• Thread-type coupling mechanism ensures low signal loss and secure connection in compact designs

Specifications

• Impedance: 50 Ohm

• Frequency Range: 0–6 GHz

• VSWR:

  • Straight type: ≤ 1.3 max

  • R/A type: ≤ 1.5 max

• Dielectric Withstanding Voltage:

  • 1000 V RMS min (RG142, RG405)

  • 750 V RMS min (RG316, RG402)

  • 500 V RMS min (RG178)

• Working Voltage:

  • 500 V RMS max (RG142, RG405)

  • 375 V RMS max (RG316, RG402)

  • 170 V RMS max (RG178)

• Center Contact Resistance: ≤ 6.0 mΩ max

• Outer Contact Resistance: ≤ 2.0 mΩ max

• Insulation Resistance: ≥ 5 × 10³ MΩ min

Mechanical Characteristics

• Coupling: 1/4-36 Thread

• Contact Retention: ≥ 15 in-lbs

• Coupling Nut Torque: ≥ 30 in-lbs

• Durability (Mating): ≥ 500 cycles (Beryllium Copper Contact)

Environmental Characteristics

• Temperature Range: −55 °C to +155 °C

• Vibration: MIL-STD-202 Method 204

• Corrosion Resistance: MIL-STD-202 Method 101

Note: Please refer to the schematic image for detailed dimensions.

Package Includes

• 1 × SMA Female Straight Edge PCB Mount Connector

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.

What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
