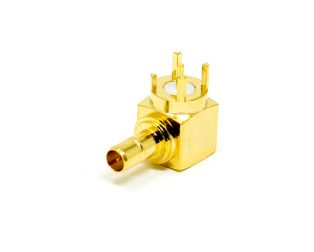

SMB Coaxial Connector Right Angle Female for PCB Mount

SMB Coaxial Connector Right Angle Female for PCB Mount

We at robu offers, a full range of cable mount BNC/TNC and a diverse range of RF connectors plugs, jacks and bulkhead jacks. These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.

A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors that suits your needs. Contact us for any other specific requirements.

Main Application of SMB Connectors:

• Aerospace and Defense: Test Stands
• Medical: Telemetry
• Commercial Vehicle: GPS
• Telecommunications: Wireless Base Stations, Cellular Mobile System
• Data/Communications: Routers, WIFI, Radio Boards
• Industrial: M2M Communications, Process Controls, Video Systems, Instrumentation

Features:

1. SMB Connector,Right Angled/90°,Through Hole,Male/Plug,Gold Plating;
2. Snap-on coupling design for fast installation;
3. With boardband performance and low reflection;
4. To reduce your Cost by using die casting process in non-critical areas.

Mechanical Characteristics

1. Coupling: Snap-on
2. Contact Retention: 4 lbs min.
3. Mating Durability: ≧500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

1. Environmental Characteristics: -65°C ~ +165°C
2. Vibration: MIL-STD-202 Meth.204
3. Corrosion Resistance: MIL-STD-202 Meth. 101

Note: Refer Schematic Image for Dimensional Details

Package Includes:

1 x SMB Coaxial Connector Right Angle Female for PCB Mount
