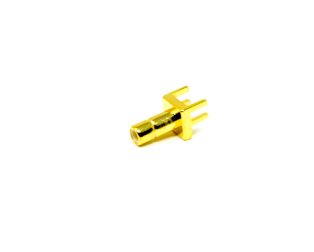

SMB RF Coax Female Straight Gold Plated for Edge Mount

We at robu offers, a full range of cable mount BNC/TNC and a diverse range of RF connectors plugs, jacks and bulkhead jacks. These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors that suits your needs. Contact us for any other specific requirements.

Main Application of SMB Connectors:

Aerospace and Defense: Test Stands
Medical: Telemetry
Commercial Vehicle: GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications: Routers, WIFI, Radio Boards
Industrial: M2M Communications, Process Controls, Video Systems, Instrumentation

Features:

1. Pcb Mount, jack/female, Straight/180°, 50Ω, Edge Mount;
2. Snap-on coupling design for fast installation;
3. With boardband performance and low reflection;
4. To reduce your Cost by using die casting process in non-critical areas.
5. Coupling: Snap-on
6. Contact Retention: 4 lbs min.
7. Mating Durability: ≧500 cycles (For Beryllium Copper Contact
8. Environmental Characteristics: -65°C ~ +155°C
9. Vibration: MIL-STD-202 Meth.204
10. Corrosion Resistance: MIL-STD-202 Meth. 101

Note: Refer Schematic Image for Dimensional Details

Package Includes:

1 x SMB RF Coax Female Straight Gold Plated For Edge Mount
