Spectra Symbol SoftPot Linear Potentiometer-SP-L-0100-103-3%-RH 100mm Female Plain Housing Connector ±3% Linearity

This is Spectra Symbol SoftPot Linear Potentiometer-SP-L-0100-103-3%-RH 100mm Female Plain Housing Connector ±3% Linearity. The SoftPot membrane potentiometer is a resistive element, which comprises a conductive resistor, a sealed encasement and a simple wiper assembly. A membrane potentiometer can also function as a voltage divider. The SoftPot is a three-wire system with two resistive output channels and an electrical collector channel.

By pressing a wiper down onto the top circuit, the SoftPot produces the desired electrical output. The “wiper” is a non-conductive mechanism that depresses the top circuit actuating the potentiometer from the outside of the element. The top and bottom circuits are separated by 0.15mm (0.006″) of spacer adhesive build-up and contact between the circuit occurs by pressure (usually 1-3 Newtons) from the wiper on the top circuit, pushing down until the top circuit connects with the bottom circuit to create a potentiometric output. The construction of the wiper design can adapt to any application because most materials can serve as the wiper: plastics, metals, sliders, rollers, wheels, etc. Also, the SoftPot can also be manually (hand) actuated.

Spectra Symbol SoftPot Linear Potentiometer-SP-L-0100-103-3%-RH 100mm Female Plain Housing Connector ±3% Linearity is a good choice for your requirements.

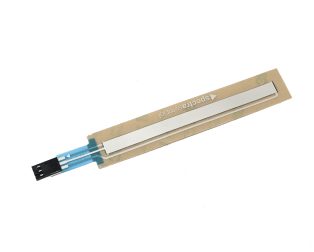

Note: Product image shown is a representation only, actual product may vary in dimensions and color.

Features:

1. Linear Position Sensor
2. IP65 Dust Proof, Water Proof (Intense Spray)
3. Polyester Substrate
4. 3M Pressure Sensitive Adhesive (PSA)
5. Repeatability: No hysteresis, but with any wiper looseness some hysteresis will occur
6. Power Rating (depending on size, varies with length and temperature): 1 Watt max. @ 25°C, </=0.5 Watt recommended
7. Resolution: Analog output theoretically infinite; affected by variation of contact wiper surface area.
8. Dielectric Value: No affect @ 500VAC for 1 minute

Package Includes:

1 x Spectra Symbol SoftPot Linear Potentiometer-SP-L-0100-103-3%-RH 100mm Female Plain Housing Connector ±3% Linearity
