Spectra Symbol ThinPot Linear Potentiometer-TSP-L-0100-103-3%-MP 100mm Male Pins Connector ±3% Linearity

This is Spectra Symbol ThinPot Linear Potentiometer-TSP-L-0100-103-3%-MP 100mm Male Pins Connector ±3% Linearity. ThinPot membrane potentiometer is a resistive element, which comprises a conductive resistor, a sealed encasement and a simple wiper assembly. A membrane potentiometer can also function as a voltage divider.

The ThinPot is a three-wire system with two resistive output channels and an electrical collector channel. By pressing a wiper down onto the top circuit the SoftPot produces the desired electrical output. The “wiper” is a non-conductive mechanism that depresses the top circuit actuating the potentiometer from the outside of the element. The top and bottom circuits are separated by 0.15mm (0.006″) of spacer adhesive build-up and contact between the circuit occurs by pressure (usually 0.7-1.8 Newtons) from the wiper on the top circuit, pushing down
until the top circuit connects with the bottom circuit to create a potentiometric output.

The construction of the wiper design can adapt to any application because most materials can serve as the wiper: plastics, metals, sliders, rollers, wheels, etc. Also, the ThinPot can also be manually (hand) actuated.

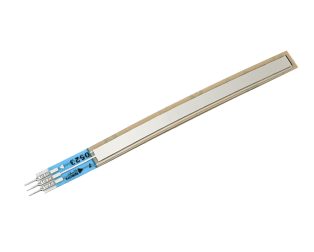

Note: Product image shown is a representation only, actual product may vary in dimensions and color. Exact specifications and technical details should be obtained from the product data sheet from the ATTACHMENTS section.

Features:

1. Linear Position Sensor
2. Half the width of the SoftPot
3. IP64 Dust Proof, Splash Proof
4. Polyester Substrate
5. 3M Pressure Sensitive Adhesive (PSA)
6. Repeatability: No hysteresis, but with any wiper looseness some hysteresis will occur.
7. Power Rating (depending on size, varies with length and temperature): 1 Watt max. @ 25°C, 0.5 Watt recommended
8. Resolution: Analog output theoretically infinite; affected by variation of contact wiper surface area.
9. Dielectric Value: No affect @ 500VAC for 1 minute

Package Includes:

1 x Spectra Symbol ThinPot Linear Potentiometer-TSP-L-0100-103-3%-MP 100mm Male Pins Connector ±3% Linearity

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.

What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
