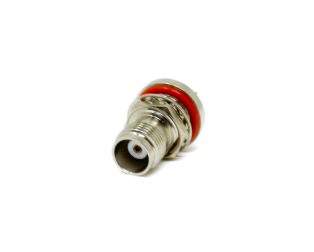

TNC 4Hole Square Flange Straight Female Connector for Panel Mount

TNC 4Hole Square Flange Straight Female Connector for Panel Mount

We at robu offers, a full range of cable mount BNC/TNC and a diverse range of RF connectors plugs, jacks and bulkhead jacks. These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.

A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors that suits your needs. Contact us for any other specific requirements.

Main Application of TNC Connectors:

Cellular Mobile Phones, Aviation Controls, Telemetry, Bluetooth and GPS, Wireless Base Stations, Microwave Components, Radar, Networks, Antenna Mounts, Machine to machine communications, Security Devices, and Instrumentation.

Features:

Mechanical Characteristics

1. Coupling: 7/16-28 thread
2. Contact Retention: 6 lbs min.
3. Mating Durability: ≧500 cycles

Environmental Characteristics

1. Environmental Characteristics:  -65oC~+145oC
2. Coupling Nut Retention: 100 lbs. min.
3. Vibration: MIL-STD-202 Meth. 204
4. Corrosion Resistance: MIL-STD-202 Meth. 101

Note: Refer Schematic Image for Dimensional Details

Package Includes:

1 x TNC 4Hole Square Flange Straight Female Connector for Panel Mount
