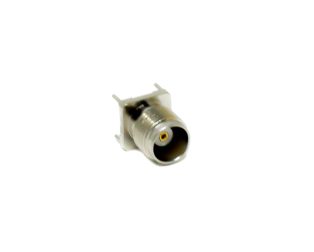

TNC Connector Videos Straight Jack for PCB Mount

TNC Connector Videos Straight Jack for PCB Mount

We at robu offers, a full range of cable mount BNC/TNC and a diverse range of RF connector plugs, jacks, and bulkhead jacks. These connectors are designed to provide compatibility with industry-grade 50-ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protection.

A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors that suits your needs. Contact us for any other specific requirements.

Main Application of TNC Connectors:

Cellular Mobile Phones, Aviation Controls, Telemetry, Bluetooth and GPS, Wireless Base Stations, Microwave Components, Radar, Networks, Antenna Mounts, Machine to machine communications, Security Devices, and Instrumentation.

Features:

1. Pcb Mount, jack/female, Straight/180°,50Ω;
2. Thread Version of BNC used in Vibration-Intense applications with high durability;
3. Higher Performance than BNC with 0-11 GHz Microwave frequencies and 50-ohm impedance;
4. High Quality with 30 days 100% Money back， made according to MIL-C-39012 standard;;
5. From the OEM Original Factory, the same quality with a much better price.

Mechanical Characteristics

1. Coupling: 7/16-28 thread
2. Contact Retention: 6 lbs min.
3. Mating Durability: ≧500 cycles

Environmental Characteristics

1. Environmental Characteristics:  -65oC~+165oC
2. Coupling Nut Retention: 100 lbs. min.
3. Vibration: MIL-STD-202 Meth. 204
4. Corrosion Resistance: MIL-STD-202 Meth. 101

Note: Refer Schematic Image for Dimensional Details

Package Includes:

1 x TNC Connector Videos Straight Jack for PCB Mount
