U.FL-R-SMT-1(80)-Hirose-1 Inner pin IPEX Board-End 1.25mm -40℃~+90℃ 6GHz 50Ω 2mm SMD Coaxial Connectors (RF) ROHS

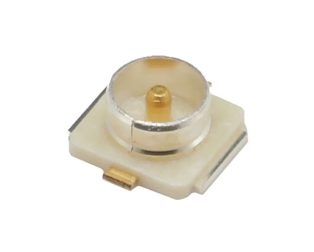

U.FL-R-SMT-1(80) Hirose IPEX Board-End RF Connector | 1.25mm | 6GHz | 50Ω | SMD | RoHS

Product Description:
The U.FL-R-SMT-1(80) from Hirose (HRS) is a high-performance IPEX board-end RF coaxial connector designed for compact wireless applications. With a 2mm interface diameter and 1.25mm mating height, this SMD connector ensures reliable RF signal transmission up to 6GHz with 50Ω impedance, making it ideal for Wi-Fi, Bluetooth, GPS, IoT, and RF modules.

Built for durability and precision, this connector operates efficiently in temperatures ranging from -40°C to +90°C and is RoHS compliant, ensuring environmental safety and regulatory compliance.

Key Specifications

• Manufacturer: Hirose (HRS)

• Model: U.FL-R-SMT-1(80)

• Connector Type: RF Coaxial Connector (Board Side)

• RF Series: IPEX (U.FL)

• Interface: Male Pin

• Mounting Style: SMD (Surface Mount)

• Interface Height: 1.25mm

• Interface Diameter: 2mm

• Impedance: 50Ω

• Frequency Range: Up to 6GHz

• Operating Temperature: -40°C to +90°C

• Compliance: RoHS

Package Includes

• 1 × U.FL-R-SMT-1(80) Hirose IPEX Board-End RF Connector

1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
