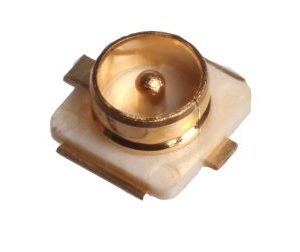

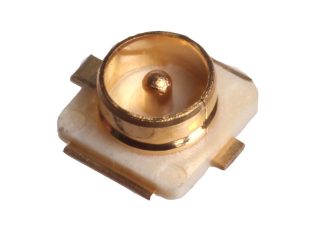

Ufl/ Ipex/ Mhf1 Rf Connector

This UFL/ IPEX/ MHF1 RF connector connects an Antenna to a communication device. It’s also called an IPEX connector. This is male type UFL connector with SMT mounting and a female-type MHF1 connector. It is generally used in antenna connection for Wifi, GSM, GPS, etc. modules.

Features:

1. High quality.
2. Low cost.
3. Interconnects.

Specifications:

1. Frequency (MHz): 0 – 6.0 GHz
2. Working Voltage (V): 200 V
3. Insulation Resistance: >500 MOhm
4. Contact Resistance: 10mA Max
5. VSWR: < 1.4
6. Body, Metal Parts: Brass with Gold Plated
7. Centre Contact: Phosphor Bronze with Gold Plated
8. Insulators: PTFE
9. Dimensions (L X H X W) : 2.5 X 2.5 X 1.9 mm

Package Includes:

1 x UFL/ IPEX/ MHF1 RF Connector

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.

What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
