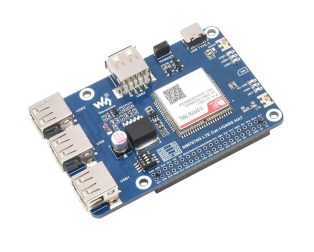

Waveshare Cat-1/GNSS HAT for Raspberry Pi, Based On SIM7670G module, Global Multi-band LTE 4G Cat-1 support, GNSS positioning, 3x USB 2.0 extended ports

The SIM7670G LTE Cat-1/GNSS HAT is an LTE Cat-1 module, supports wireless communication modes including LTE-TDD, LTE-FDD, with up to 10Mbps downlink rate and 5Mbps uplink rate. Supports Windows/Linux operating systems and multiple network protocols. The module size is the same as SIM7000/SIM7070/A7670E series, and the AT commands are mostly compatible with SIM800 series. It is suitable for IoT applications like remote information processing, monitoring devices, industrial routers, remote diagnosis, satellite positioning, and so on.

Features:

1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
2. Supports protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL
3. Supports RNDIS, NDIS and ECM dial-up
4. Supports GPS, GLONASS, Galileo, BeiDou positioning
5. Onboard USB Type-A and Type-C interfaces, for testing AT Commands, network communication, and so on
6. Extended 3x USB 2.0 Type-A ports for the host devices such as Raspberry Pi, Windows PC
7. Reserved control pads of the SIM7670G module such as UART and USB pins, make it easy to connect with other host boards
8. SIM card slot, supports 1.8V/3V SIM card
9. 6x LED indicators, easy to monitor the module operating status and USB connecting status
10. Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/STM32)

Specifications:

COMMUNICATION PARAMETERS

1. Frequency band: LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 – LTE-TDD：B34, B38, B39, B40, B41
2. Data transmission: ≤5Mbps (UL) / ≤10Mbps (DL)
3. GNSS: GPS, GLONASS, Galileo, BeiDou

OPERATING PARAMETERS

1. Power supply: 5V
2. Logic level: 3.3V
3. Dimensions: 85 × 56.7mm

Package Includes:

1 x SIM7670G Cat-1/GNSS HAT

1 x USB-A to USB-C cable

1 x GPS Antenna

1 x LTE Antenna

1 x 2×20PIN female pinheader

1 x USB 3.0 Adapter

1 x USB 2.0 Adapter

1 x Screws pack

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
