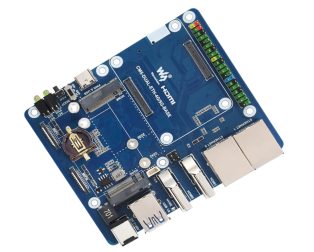

Waveshare Dual Ethernet Base Board For Raspberry Pi CM5

The Waveshare Dual Ethernet Base Board for Raspberry Pi Compute Module 5 is a feature-rich and industrial-grade expansion platform designed for high-performance networking, edge computing, and communication applications. Dual Ethernet Base Board offers dual Ethernet ports (2.5G + 1G), dual 4K HDMI outputs, dual USB 3.2 interfaces, and support for M.2 NVMe SSDs and 4G/5G cellular modules.

With a wide 7–36V power input, PWM fan support, TF card slot, and full access to the Raspberry Pi 40-Pin GPIO, it provides exceptional flexibility for remote monitoring, IoT gateways, AI edge computing, robotics, industrial automation, and digital signage deployments.

Features:

1. Dual Ethernet ports: 2500M + 1000M RJ45 for fast and stable networking
2. Supports M.2 NVMe SSD for high-speed storage and system boot
3. M.2 B-Key slot for 4G/5G cellular communication modules
4. Dual HDMI outputs supporting dual 4K display
5. USB 3.2 Gen1 ×2 for high-speed peripheral expansion
6. Dual MIPI interfaces for CSI cameras or DSI displays
7. Wide 7–36V DC power input with 5V Type-C option
8. Built-in fan header and included cooling fan for efficient thermal management

Package Includes:

1 x Waveshare Dual Ethernet Base Board For Raspberry Pi CM5

1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
