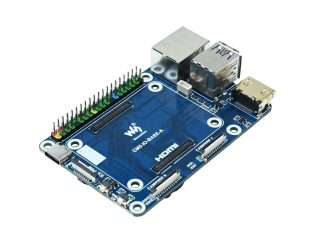

Waveshare Mini Base Board (A) Designed for Raspberry Pi Compute Module 5

The Waveshare Mini Base Board (A) is designed specifically for the Raspberry Pi Compute Module 5, offering a compact and efficient platform for development. It provides essential connectivity options, including GPIO pins, USB ports, HDMI, Ethernet, and more, allowing users to easily integrate the Compute Module 5 into various projects.

With its small form factor, the Mini Base Board (A) is ideal for space-constrained applications while maintaining full functionality, making it a great choice for both prototyping and embedded systems.

Features:

1. CM5-IO-BASE-A: Built to connect easily with the Raspberry Pi Compute Module 5
2. Standard CM5 Socket & GPIO Header: Color-coded 40PIN GPIO header for easy connections
3. Compatible with CM5 Lite/eMMC: Supports both Lite and eMMC series modules
4. Compact & Complete: Includes multiple onboard connectors for convenience
5. Mounting Options: Supports wall-mount and rail-mount installation for flexibility
6. Connector : 16PIN PCIe (PCIe Gen2/3 x1),Raspberry Pi 40PIN GPIO header
7. USB : USB 3.2 Gen1 Type A × 2, USB 2.0 via 6PIN 1mm FFC connector × 2
8. MIPI : 4-lane MIPI interface × 2 (22pin 0.5mm FFC connector)
9. Video : HDMI port × 2 (including one port via FFC connector), supports dual 4K outputs
10. Storage :  TF card slot for Compute Module 5 Lite (without eMMC) variants

Package Includes:

1 x CM5-IO-BASE-A
1 x Screws pack

1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
