Waveshare Mini Dual Gigabit Ethernet Base Board Designed for Raspberry Pi Compute Module 4

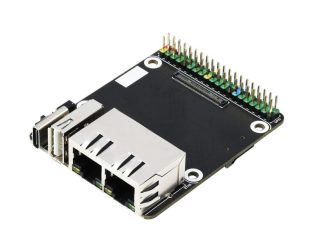

Mini Dual Gigabit Ethernet Base Board Designed for Raspberry Pi Compute Module 4.CM4-DUAL-ETH-MINI, a baseboard that can be used with Raspberry Pi Compute Module 4, supports 5V DC Type-C interface power supply, and features dual Gigabit Ethernet ports, a single-channel USB2.0 with a fan interface and standard Raspberry Pi 40Pin interface, which is suitable for scenarios requiring multiple network ports such as soft routing.

Openwrt has the ability for full customization and extensibility. Openwrt is becoming more and more popular at present. Compared with commonly used wireless routers, OpenWrt’s modifiable firmware allows us to customize router functions according to our own needs, such as single-arm routing, automatic Define routing policies, QoS, etc., intranet penetration, etc.

Features:

1. Suitable For Evaluating The Raspberry Pi CM4
2. Onboard ETH/Micro SD/USB Interfaces
3. Standard CM4 Socket And 40PIN GPIO Header
4. Suitable For Compute Module 4 Lite/EMMC Series Module

Useful Links:

• CM4 Datasheet
• CM4-DUAL-ETH-MINI-SchDoc
• 3D Model

Software

• Rpiboot setup.zip
• SDFormatter
• Win32DiskImager
• Putty

Package Includes:

1 x Waveshare Mini Dual Gigabit Ethernet Base Board

1 Month Warranty

This item is covered with a standard warranty of 1 month from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Roboucreate customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.

What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
