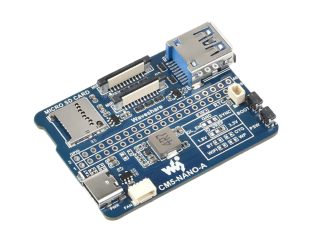

Waveshare Nano Base Board (A) for Raspberry Pi Compute Module 5, Same Size As The CM5

The Waveshare Nano Base Board (A) is specifically designed for the Raspberry Pi Compute Module 5 (CM5), offering a compact and efficient solution for various embedded projects. With the same size as the CM5, it ensures a seamless integration while maintaining a small footprint, making it ideal for space-constrained applications.

This base board provides essential interfaces and connectors, allowing users to easily connect peripherals and expand functionality. Perfect for both evaluation and integration into end products, it delivers the flexibility needed for custom solutions in a variety of industries.

Features:

1. Ideal for CM5 evaluation or integration
2. Compatible with CM5 Lite/eMMC
3. Same size as the CM5
4. Compact and fully functional
5. Multiple peripheral interfaces
6. Perfect for space-constrained applications
7. CM5 socket suitable for all variants of Compute Module 5
8. Connector Raspberry Pi 40PIN GPIO interface × 1
9. USB USB 3.2 Gen1 Type A port × 1
10. MIPI MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector)
11. Storage TF card socket for Compute Module 5 Lite (without eMMC) variants

Package Includes:

1 x CM5-NANO-A
1 x 2*20PIN color-coded straight pin header

1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
