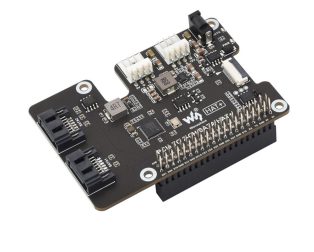

Waveshare PCIe To 2-Ch Plug And Play SATA Adapter For Raspberry Pi 5

The Waveshare PCIe to 2-Ch SATA Adapter (HAT+) is a plug-and-play solution for adding dual SATA ports to your Raspberry Pi 5. Built on the 16-pin PCIe interface, it supports SATA Gen3 drives and connects easily without the need for drivers. Ideal for NAS, media servers, and storage projects, this adapter comes with onboard EEPROM to store HAT ID info, and dual LED indicators for status monitoring. Designed in the HAT+ form factor, it ensures seamless compatibility with your Pi 5 while supporting high-speed SATA 3.0 data transmission. A compact, efficient, and ready-to-use upgrade for storage expansion.

Features:

1. Plug-and-play, no driver installation required
2. Supports 2x SATA hard drives (SATA Gen3)
3. Compatible with Raspberry Pi 5 via 16-pin PCIe interface
4. Compliant with PCIe Gen2 and SATA 3.0 standards
5. HAT+ standard form factor for stackable design
6. Onboard dual LED indicators for drive activity
7. Integrated EEPROM to store HAT ID and config
8. Ideal for building Raspberry Pi NAS and media servers

Package Includes:

1 x Waveshare PCIe To 2-Ch Plug And Play SATA Adapter For Raspberry Pi 5

1 x 16P-cable 40mm

2 x SATA Adapter Cable

1 x Screw Pack
