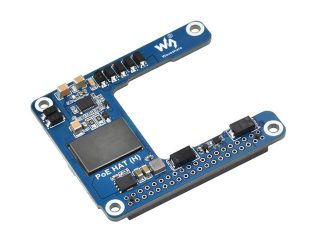

Waveshare Power Over Ethernet HAT (H) For Raspberry Pi 5 CM 5, 5V 5A Output, Supports 802.3afat Network Standard, Isolated Switched-m]Mode Power Supply, Raspberry Pi 5 PoE HAT

The Waveshare Power Over Ethernet HAT for Raspberry Pi 5 / CM 5 provides a reliable 5V 5A output, delivering power directly through an Ethernet cable. It supports the 802.3af/at network standard, ensuring compatibility with a wide range of PoE-enabled devices.

Waveshare Power Over Ethernet HAT is featuring an isolated switched-mode power supply, this PoE HAT ensures stable and efficient power delivery to your Raspberry Pi 5, eliminating the need for separate power adapters. Perfect for projects requiring both power and data over a single Ethernet connection, it is an essential accessory for the Raspberry Pi 5 and CM 5.

Features:

1. Standard Raspberry Pi 40PIN GPIO header
2. PoE capability , IEEE 802.3af/at-compliant
3. Onboard original IC solution for more stable PoE power performance
4. Adopts isolated switched-mode power supply (SMPS)
5. Compact and easy to assemble
6. Input voltage 5V DC (supplied via four-pin fan header on Raspberry Pi 5)
7. Fan speed control Pulse width modulation control with tachometer
8. Maximum airflow 2.79 CFM
9. Maximum Fan speed 8000 RPM ±15%
10. Case material ABS (base, frame, lid) and PC (fan assembly)
11. PoE power input 38V ~ 57V DC in

Package Includes:

1 x PoE HAT (H)
1 x 2*2 header
1 x 2*20 header
1 x Standoffs pack

1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
