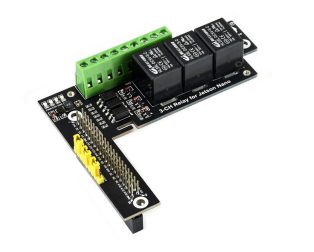

Waveshare Quality 3-Ch Relay Expansion Board Designed For Jetson Nano, Optocoupler Isolation

The Waveshare Quality 3-Ch Relay Expansion Board is a high-quality solution designed specifically for the Jetson Nano, providing users with the ability to control high-voltage appliances. A key feature of this board is its optocoupler isolation, which effectively prevents interference from high-voltage circuits, ensuring the stability and reliability of the Jetson Nano. This expansion board incorporates quality relay components, capable of handling significant loads, and it utilizes a standard 40PIN GPIO header for direct plug-and-play compatibility with the Jetson Nano.

Features:

1. Standard 40PIN GPIO header, directly pluggable onto the Jetson Nano
2. Incorporate quality relay component, max load: ≤5A 250V AC or ≤5A 30V DC
3. Optocoupler isolation, prevent interference from the high voltage circuitry
4. Indicators for monitoring the relay operating status
5. Control pins of relays are configurable via jumpers
6. Acrylic bottom panel, isolating the Jetson Nano from the relay expansion board
7. Comes with development resources and user manual (python and python-bottle examples)

Package Includes:

1 x 3-CH Relay for Jetson Nano
1 x Acrylic panel
1 x Screws pack
