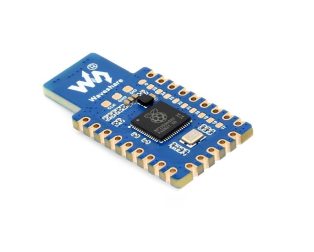

Waveshare RP2350-One Onboard PCB Type-A Plug MCU Board Based On Raspberry Pi RP2350A Dual core Dual-architecture Microcontroller

Waveshare RP2350-One is a compact and versatile microcontroller board powered by the Raspberry Pi RP2350A chip. It features a dual-core, dual-architecture design with 4MB onboard Flash, enabling robust performance for diverse applications. Equipped with a PCB Type-A plug, the RP2350-One integrates seamlessly into USB ports, simplifying connectivity. Its small form factor and high-performance capabilities make it ideal for IoT, prototyping, and embedded system projects.

Features:

1. Dual-core Design: Combines Arm Cortex-M33 and RISC-V processors for flexible, high-performance computing.
2. Onboard Flash & SRAM: 4MB of Flash memory and 520KB SRAM for efficient data storage.
3. USB Connectivity: Onboard PCB Type-A male port with USB 1.1 support for device and host connections.
4. Flexible GPIO Options: 29 multi-function GPIO pins, with 20 accessible via edge pinout.
5. Multiple Communication Protocols: Supports 2x SPI, 2x I2C, 2x UART, and more for diverse peripheral connections.
6. Analog Inputs & PWM: Includes 4x 12-bit ADCs and 16x PWM channels for detailed control.
7. Low-power Features: Sleep and dormant modes for energy efficiency.
8. Drag-and-drop Programming: Easy programming via mass storage over USB.

Package Includes:

1 x RP2350-One

1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
