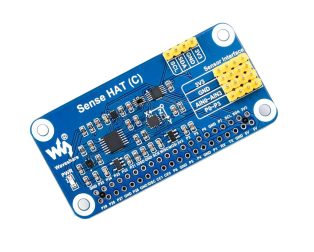

Waveshare Sense HAT (C) for Raspberry Pi, Onboard Multi Powerful Sensors, Supports External Sensors

2,321.00 (incl. GST)

Shipping calculated at checkout.

Description

Sense HAT (C) For Raspberry Pi, Onboard Multi Powerful Sensors, Supports External Sensors.Trying to make the Pi become a robot that can detect movement and orientation? Or using the Pi to collect environmental temperature, humidity, and barometric pressure data? This HAT would be your ideal choice. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards Onboard QMI8658C+AK09918 (3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer), detects movement, orientation, and magnetic Onboard SHTC3 digital temperature and humidity sensor, allows monitoring the environment.


Features:

  1. The onboard LPS22HB barometric pressure sensor allows monitoring of the environment
  2. Onboard TCS34725 color sensor, identifies the color of a nearby object
  3. Onboard SGM58031, 4-ch 16-bit precision ADC, AD expansion to support more external sensor

Package Includes:

1 x Waveshare Sense HAT (C) for Raspberry Pi, Onboard Multi Powerful Sensors, Supports External Sensors

Specification

Item Type HAT
Compatibility Pi Series
HAT Type Sense HAT
Operating Voltage (VDC) 3.3
Logic Voltage 3.3
Accelerometer Resolution: 16-bit
Gyrometer Resolution: 16-bit
Magnetometer Resolution: 16-bit
Barometer Resolution: 24-bit pressure data, 16-bit temperature data
Sensor Color Recognition Sensor (4-channel RGBC, 16 bits per channel)
ADC / DAC Resolution: 16 bits
Shipping Weight 0.025 kg
Shipping Dimensions 7 × 2 × 2 cm
