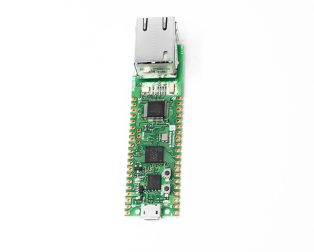

WIZnet W5100S-EVB-Pico

W5100S-EVB-Pico is a microcontroller evaluation board based on the Raspberry Pi RP2040 and entirely hardwired TCP/IP controller W5100S – and basically works the same as Raspberry Pi Pico board but with additional Ethernet via W5100S.

WIZnet W5100S-EVB-Pico Evaluation Board is a compact development platform based on the Raspberry Pi RP2040 Microcontroller. The 133MHz RP2040 MCU has a dual Arm® Cortex®-M0+ core delivering high performance, with various low-power modes to support extended-duration operation on battery power. The RP2040 also features a large on-chip memory, symmetric dual-core processor complex, deterministic bus fabric, and a rich peripheral set augmented with the RPi Programmable I/O (PIO) subsystem.

Note: Product Images are shown for illustrative purposes only and may differ from the actual product.

Features:

1. RP2040 microcontroller with 2MByte Flash
2. Dual-core cortex M0+ at up to 133MHz
3. 264kByte multi-bank high-performance SRAM
4. External Quad-SPI Flash with eXecute In Place (XIP)
5. High-performance full-crossbar bus fabric
6. 30 multi-function General Purpose IO (4 can be used for ADC)
7. 1.8-3.3V IO Voltage (NOTE. Pico IO voltage is fixed at 3.3V)
8. 12-bit 500ksps Analogue to Digital Converter (ADC)
9. Various digital peripherals
10. 2 × UART, 2 × I2C, 2 × SPI, 16 × PWM channels
11. 1 × Timer with 4 alarms, 1 × Real Time Counter
12. 2 × Programmable IO (PIO) blocks, 8 state machines total
13. Flexible, user-programmable high-speed IO
14. Can emulate interfaces such as SD Card and VGA
15. Includes W5100S
16. Supports Hardwired Internet Protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
17. Supports 4 Independent Hardware SOCKETs simultaneously
18. Internal 16 Kbytes Memory for TX/ RX Buffers
19. SPI Interface
20. Micro-USB B port for power and data (and for reprogramming the Flash)
21. 40 pin 21×51 ‘DIP’ style 1mm thick PCB with 0.1″ through-hole pins also with edge castellations
22. 3-pin ARM Serial Wire Debug (SWD) port
23. 10 / 100 Ethernet PHY embedded
24. Supports Auto-Negotiation
25. Full / Half Duplex
26. 10 / 100 Based
27. Built-in RJ45(RB1-125BAG1A)
28. Built-in LDO (LM8805SF5-33V)

Package Includes:

1 x WIZnet W5100S-EVB-Pico
