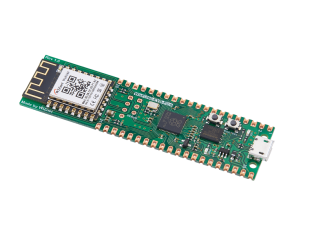

WIZnet WizFi360-EVB-Pico

The WIZnet WizFi360-EVB-Pico is a development board designed for the WizFi360 module, a low-power, compact Wi-Fi module that provides Wi-Fi connectivity for IoT devices.

The development board includes a WizFi360 module, a USB port for power and communication, and various other connectors for interfacing with other devices. The board also consists of an onboard antenna and a U.FL connector for an external antenna, providing flexibility for antenna placement and optimization.

The WizFi360-EVB-Pico is designed to be used with the WIZnet WizFi360-EVB evaluation board, which provides a complete development environment for the WizFi360 module, including software development tools and example code.

Features:

1. RP2040 microcontroller with 2MByte Flash
   • Dual-core cortex M0+ at up to 133MHz
   • 264kByte multi-bank high-performance SRAM
   • External Quad-SPI Flash with eXecute In Place (XIP)
2. Includes WizFi360-PA
   • WiFi 2.4G, 802.11 b/g/n
   • Support Station / SoftAP / SoftAP+Station operation modes
   • CE, FCC certification
3. Includes 16M-bit Flash Memory
4. Micro-USB B port for power and data (and for reprogramming the Flash)
5. 40 pin 21×51 ‘DIP’ style 1mm thick PCB with 0.1″ through-hole pins also with edge castellation
6. 3-pin ARM Serial Wire Debug (SWD) port
7. Built-in LDO

Package Includes:

1 x WIZnet WizFi360-EVB-Pico

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
